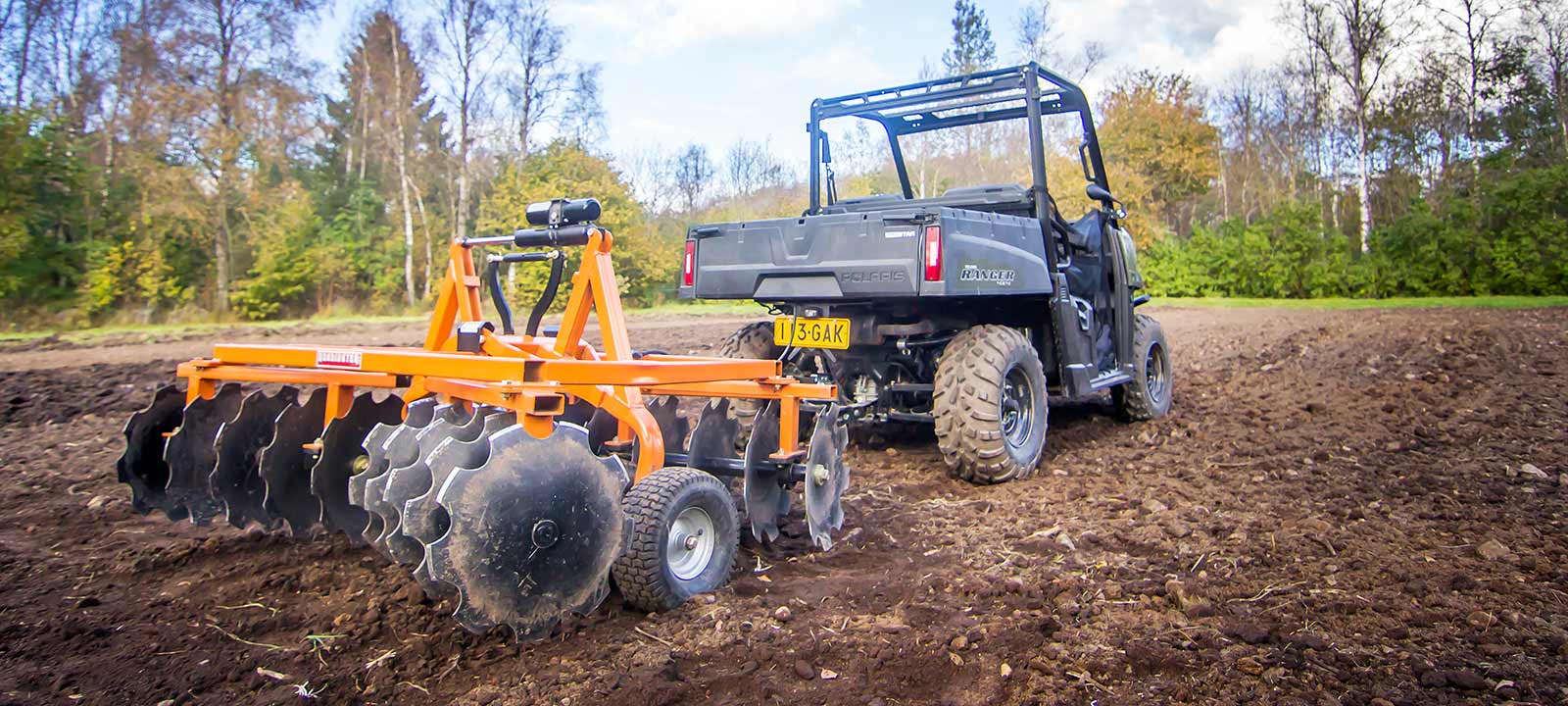

Quadivator UTV tandem disc is a heavy-duty tandem disc designed for UTVs but can also be used with heavier and more powerful (800cc and up) ATVs, small tractors, or any other vehicle equipped with a 50 mm / 2'' hitch ball. The tandem disc comes with notched discs that can easily cut through larger hard patches of soil, turf, and furrows and can also be used for grinding up dried vegetation for fallows. The angle of the discs can be adjusted to regulate the cutting and mixing of the soil. The hitch height can easily be changed to match that of the towing vehicle.
Even though the UTV tandem disc is larger and heavier than the ATV tandem disc, it is light enough and easily maneuverable making it also well suited for wet or boggy ground and tighter spaces, where larger equipment might struggle. The tandem disc attached to a UTV is capable enough for small and medium scale farming making work simple and fast.
To find the right UTV tandem disc for your needs, visit our store or contact a regional dealer.
-
Heavy duty square tube steel frame structure.
-
Galvanized and powder coated surfaces.
-
10 notched discs in front and 10 notched discs in rear.
-
Easy adjust turnbuckle for depth control.
-
5 disk angle positions for cutting and mixing the soil
(standard at 18 degrees, adjustable from 10 to 23 degrees). -
18 adjustable hitch height positions.
-
Oscillating beam axles for excellent floatation.
-
Quick and easy to switch between working and transportation positions.
-
Manual lift kit included.
-
Optional 12V DC mini-motion package or hydraulic power unit lifts and lowers the tandem disc without you leaving the seat.
-
Complete user guide & safety instructions included.
UTV tandem disc technical info
- Material:
- Galvanized and powder coated square steel frame
- Dimensions:
- L 2200 mm x W 1800 mm x H 1050 mm
L 86.6 in x W 70.9 in x H 41.3 in
- Working width:
- 1800 mm / 70.9 in
- Discs:
- 425 mm / 16.7 in diameter discs;
10 notched in front + 10 notched in the back
- Tyres:
- 15x6.00-6
- Weight:
- 230 kg / 507 lb
Accessories for UTV Tandem Disc
Electric / hydraulic actuator (mini-motion package)
Dimensions: L 420-670 mm (16.5-26.4 in) x W 80 mm(3.1 in) x H 136 mm (5.4 in)
Capacity: 1800 lb
Stroke: 250 mm (9.8 in)
Gap between mounting eyes:
380-630 mm (15-24.8 in)
Cylinder arm diameter:
20 mm (0.8 in)
Mounting eye diameter: 5/8"
Weight: 5 kg (11 lb)
An electric over hydraulic linear actuator for adjusting the position of plows. Features an electric DC motor (powered by the vehicle's battery) integrated with hydraulic valves, pump and cylinder. Manufactured by KYB (model MMP4-B1B250BB-DHR).
Requires a wiring harness & switch kit.
Hydraulic power unit
Dimensions: L 500 mm (20 in) x W 200 mm (7.9 in) x H 120 mm (4.7 in)Motor: 500 W / 12 V DC
Pump: 2.8 L/min (0.66 gal/min)
Pressure: NOM 120 bar (1740 psi), MAX 160 bar (2321 psi)
Couplings: 2 x 1/4" quick release for up to 2 cylinders
Oil tank capacity: 1 L (0.26 gal)
Weight: 12 kg (26.5 lb)
Hydraulic unit for adjusting the position of plows. Powered by the vehicle's battery and controlled via a radio controlled remote switch or a handlebar switch.
Hydraulic cylinder
(Quadivator UTV products)
Cylinder diameter:32 mm (1,26 in)
Gap of mounting eyes in closed position: 380 mm (15 in)
Cylinder stroke: 250 mm (9.8 in)
Hose length: 3000 mm (118 in)
Quick release coupling: 1/4'
Weight: 4 kg (8.8 lb)
For moving Quadivator UTV cultivator, harrow, landscape rake, tandem disc, and two-bottom plow.
Weight Kit
(Quadivator 86410)
Material: powder coated steelDimensions:
L 450 mm (17.7 in) x W 90 mm (3.5 in) x H 165 mm (6.5 in)
Weight: 46 kg (101.4 lb)
Attaches to the outer sides of the tandem disc or two-bottom plow frame to penetrate hard or sodded soils. Sold in pairs.
