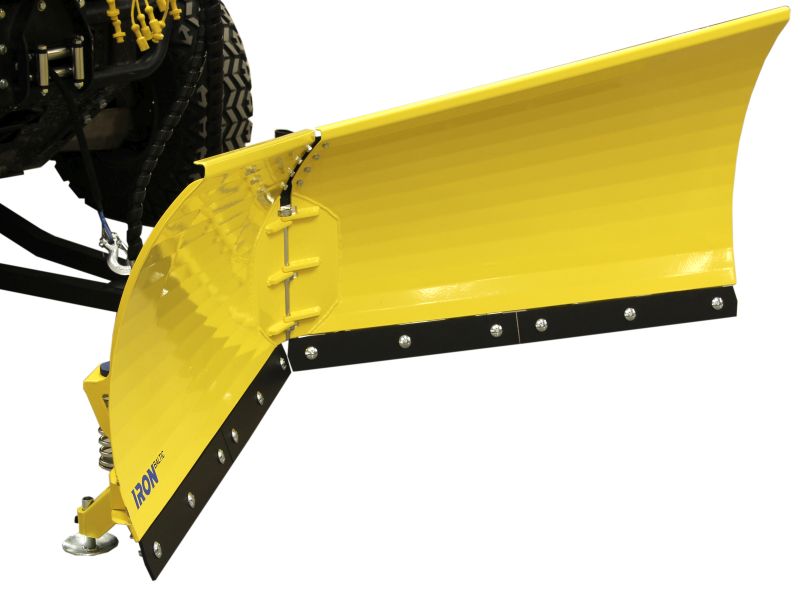

V-Plow 1800 G2 mid mount kit (34.2200+34.3800)

V-Plow 1800 G2 mid mount kit
(34.2200+34.3800)

Code: 34.2000

1 200.00 ^€

In stock

Ask additional product info

Brand:: IB

Material:: Steel

Surface:: Powder coated

Working width:: 1800 mm

Weight:: 105.5 kg

Packed dimensions:: 1210 x 800 x 650 mm

Heavy duty steel construction! Suitable for cleaning snow or pushing sand, dirt, gravel, etc.

Suitable to use with the UTV / side by side machines or also with the bigger / heavier (650cc+) ATV-s.

Vehicle model specific "mid mount adapter" needed for installing the plow kit to vehicle (see section mid-mount adapters).

34.2000 kit consist of part numbers: 34.3800 (1800 V-Plow blade) and 34.2200 (mid mount push tubes for G2 V-Plow kits).

Impact reducing springs helps the plow move over small obstacles without breaking.
Different working angle positions.
Working width (track) in max reversed V position: 1530 mm
Working width (track) in max V position: 1560 mm
Working height adjustment.
Blade angle adjustment.
Plow lifting with ATV winch.
Curved design provides better snow and dirt roll-off at any angle.
Packed as 2 packing units: 1210 x 800 x 340 mm wooden box + 1500 x 310 x 430 mm carton box
